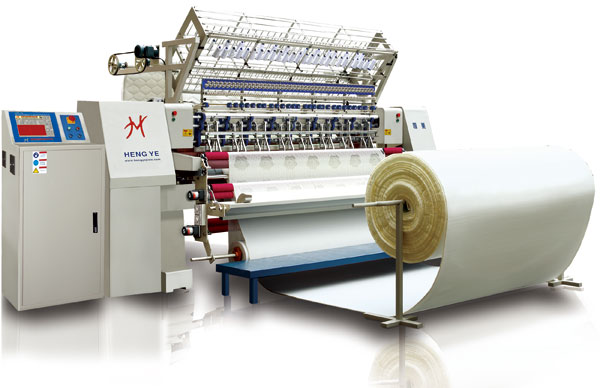

Product Name:Computerized Lock Stitch Multi-needle Quilting Machine model:HY-128-3A
Purpose:It is widely used for quilting high-quality garments, quilt covers,vanity,gloves,sleeping bag, pajamas,bed spread,seat cover, plus material and household ornam
Note:When you order, please make sure the type of the bobbin, 10# or 7#.
Detail Information:
· Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
· High rigidity machine body and structure can make the machine running faster and more stable.
· Adopting the new structure of press plate’s adjusting makes the machine much simple.
· Multi-span independent pattern (360°and 180° patterns are available)
· Advanced and practical up thread-break detection unit
· Computerized automatic needle-lifting speed adjustment
· New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting
· Easy preparation of CAD drawing extremely precise
· Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine
· Able to quilt simple embroidery patterns
· Fault detecting and indication enabling fast fault correction and return operation
Parameter(Unit mm)：
| Parameter(Unit mm) | HY-64-3A | HY-94-3A | HY-128-3A |
|---|---|---|---|
Dimension(L×W×H): |
3350 1160 1750 |
4500 1160 1750 |
5350 1160 1800 |
Quantity of needle bar: |
3 |
3 |
3 |
Quilting width: |
1600 |
2450 |
3300 |
Space between needle rows: |
76.2,152.4 |
76.2,152.4 |
76.2,152.4 |
Space between needles: |
25.4 |
25.4 |
25.4 |
X-axis movement displacement: |
203.2 |
305 |
305 |
Thickness of quilting: |
≤25 |
≤25 |
≤25 |
Stitch length: |
2~5 |
2~5 |
2~5 |
Speed of production(m/h) |
20-100 |
20-100 |
20-90 |
Model of needle: |
16#,19# |
16#,19# |
16#,19# |
Speed of main shaft(RPM): |
550~800 |
550~800 |
450~700 |
Total power required: |
4.5KW |
4.5KW |
5.5KW |
Voltage: |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
Gross weight: |
2500kg |
3800kg |
4500kg |

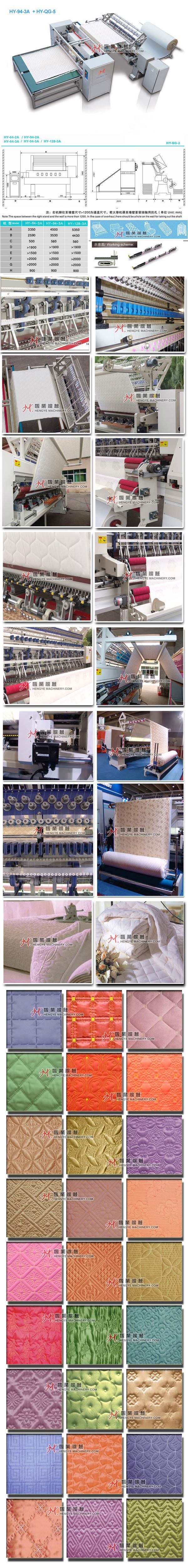

Patterns
