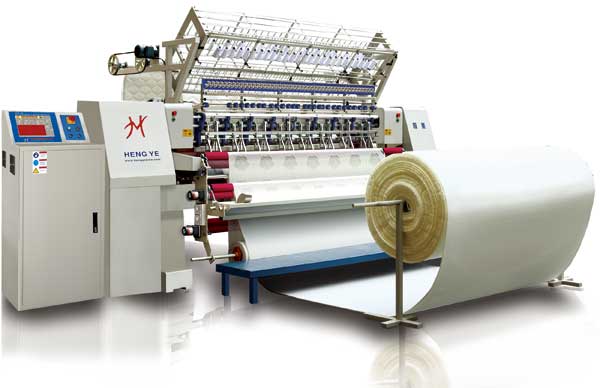

Product Name:Computerized Lock Stitch Multi-needle Quilting Machine     model:HY-64-2A

Purpose:It is widely used for quilting high-quality garments, quilt covers,vanity,gloves,sleeping bag, pajamas,bed spread,seat cover, plus material and household ornam

Note:When you order, please make sure the type of the bobbin, 10# or 7#.

Detail Information:

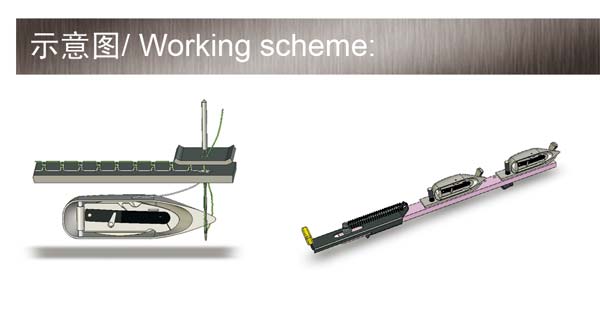

·　Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.

·　High rigidity machine body and structure can make the machine running faster and more stable.

·　Adopting the new structure of press plate's adjusting makes the machine much simple.

·　Multi-span independent pattern (360°and 180° patterns are available)

·　Advanced and practical up thread-break detection unit

·　Computerized automatic needle-lifting speed adjustment

·　New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting

·　Easy preparation of CAD drawing extremely precise

·　Different patterns in each line can be quilted on 3.2 m fabric and patterns can strongly combine

·　Able to quilt simple embroidery patterns

·　Fault detecting and indication enabling fast fault correction and return operation

Parameter(Unit mm)：

Parameter(Unit mm) HY-64-2A HY-94-2A

Dimension(L×W×H):

3350×1050×1750

4500×1050×1750

Quantity of needle bar:

2

2

Quilting width:

1600

2400

Space between needle rows:

76.2

76.2

pace between needles:

25.4

25.4

X-axis movement displacement:

203.2

305

Thickness of quilting:

≤25

≤25

Stitch length:

2~5

2~5

Speed of production(m/h)

20-100

20-100

Model of needle:

16#,19#

16#,19#

Speed of main shaft(RPM):

550~800

550~800

Total power required:

4.5KW

4.5KW

Voltage:

380V/50HZ , 220V/60HZ

380V/50HZ , 220V/60HZ

Gross weight:

2500kg

3500kg
